SL2-18U - 17" LCD Console with 8-port Combo (USB+PS/2) KVM Switch Rack Console

SL2-18U - 17" LCD Console with 8-port Combo (USB+PS/2) KVM Switch Rack Console

$2,100.00 USD
$2,100.00 USD
Sale Sold out
Shipping calculated at checkout.


ConnectPRO SL2-18U 8 PORT LCD KVM CONSOLE PS/2 or USB

17" StreamLine 2, LCD console with 8-port combo (USB+PS/2) KVM switch

Product Overview

Manage all your servers in the rack from a 1U fold-out LCD console with 8-port combo (USB+PS/2) KVM switch. The StreamLine2 takes no more than 1 Unit of rack space and provides all the control you need over your servers with a sleek 17″ LCD TFT screen.

Features & Benefits
  • A compact and efficient way to control multiple computers in a 19” by 36” deep Rack Cabinet.
  • Adjustable mounting brackets to fit any cabinet
  • Comfortable laptop design with integrated keyboard and touchpad mouse
  • Drawer locks firmly into position firmly when in use
  • High resolution 17” Active Matrix Color TFT LCD monitor, displays up to 1280 x 1024 pixels
  • Optional 8 or 16 port KVM switch modules lets users controls up to 16 computers directly, and up to 136 computers in total
  • Quick and easy installation
  • Standard 19″ 1U rack drawer

Modules

Part KVM Module KVM Ports Support Cables
SL2-18A SKI-18A 8 PS/2 USB SPA-xxP / SPA-xxU
SL2-116A SKI-116A 16 PS/2 USB SPA-xxP / SPA-xxU


Technical Specs

LCD Panel Specs

Specifications

17” LCD Panel
Active Display Area 337.920 x 270.336 (mm)
Pixel Pitch (mm) 0.264(H) x 0.264(V)
Resolution 1280 x 1024 @60/70/75Hz
Color Pixel Arrangement RGB vertical strip
Display Mode Normal White

Brightness

(cd/m^2)

 300 (center)
Contrast Ratio 800:1
Display Color 16.2M colors (RGB 6-bits + FRC data)
User Control OSD Control (auto saving)
Input Signal RGB analog, H/V separate
Plug-n-Play VESA VESA DDC 1/2B

Power Consumption
(Maximum)

 36W
(normal operation)(Typical)
Viewing Angle(Typical) - 80~ 80(H)
- 80~ 80(V)
Backlight Unit 4 CCFLs edge-light(top/bottom)
Operating Temperature 0 to + 50 (˚C)
Storage (Shipping)Temp. - 20 to + 60 (˚C)
Operating Humidity Relative Humidity 8% ~ 95%
Non-Operating Humidity 95% RH
Power Supply Input Voltage Full range, 100V AC to 240V AC
Approval CE, FCC for the product. UL, TUV, CE for power supply


StreamLine Console / KVM

Part
KVM
Module
Ports
Support
Rack
SL2-18A
SKI-18A
8
PS/2, USB
1U
SL2-116A
SKI-116A
16
PS/2, USB
1U

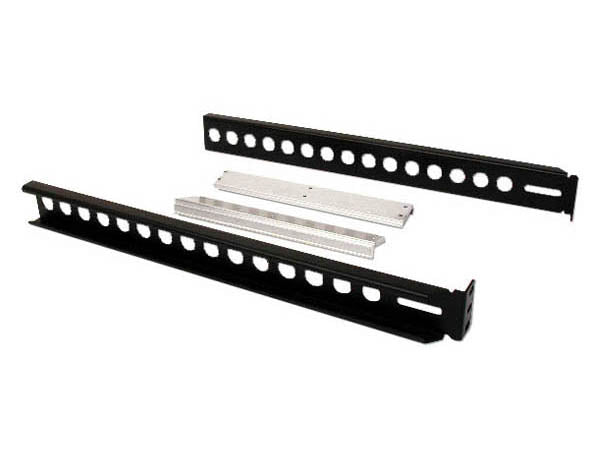

Rear Bracket Extension (for rack-mounting)

Part
Min Depth
Max Depth
RES-1
cm.
49.5
57
in.
19.5
22.3
RES-2
cm.
57.5
70.5
in.
22.5
27.7
RES-3
cm.
67.5
80.5
in.
26.5
31.5
RES-4
cm.
77.5
90.5
in.
30.5
35.5
RES-5
cm.
88.5
100.5
in.
34.8
39


Power Consumption Specs

Console
Power
KVM Module
Rack
SL2-00
36W
SK-18
~1.6W
SKI-18
~1.6W
SKI-18A
~1.6W


Shipping & Returns

- Shipping costs are calculated based on the customer's shipping address.

- International customers are responsible for paying VAT/import taxes. We do not collect VAT/import taxes.

- Shipping fees are non-refundable

- All orders are shipped with signature required upon package delivery.

- Product return requests are accepted within 15 days of receiving the product. No product return requests will be accepted after the 15 day return window has passed.

- 2.9% credit card processing fee is non-refundable for all order cancellations and product returns

Warranty information

- All New ConnectPRO KVM switches will come with a 3 year warranty.

- Certified Pre-owned KVM switches come with a 1 year warranty

- ConnectPRO video emulators and other accessories will come with 1 year warranty.
