UDP2-14AP DisplayPort 1.4 KVM Switch for Dual Monitors and 4 Systems

Order Information:

Product Overview

Industry-grade  DDM class DisplayPort 1.4 USB 3.0 KVM8 and switch for sharing 2 monitors, USB 3.0 devices for 4 computer systems or laptop computers.

Our fastest KVM switch solutions are perfect for high-performance applications such as gaming, video editing, health care/hospital, stock trading, and many more kinds of applications. With lightning-fast switching speeds and ultra-low latency, you can be sure that your devices will respond quickly and accurately.

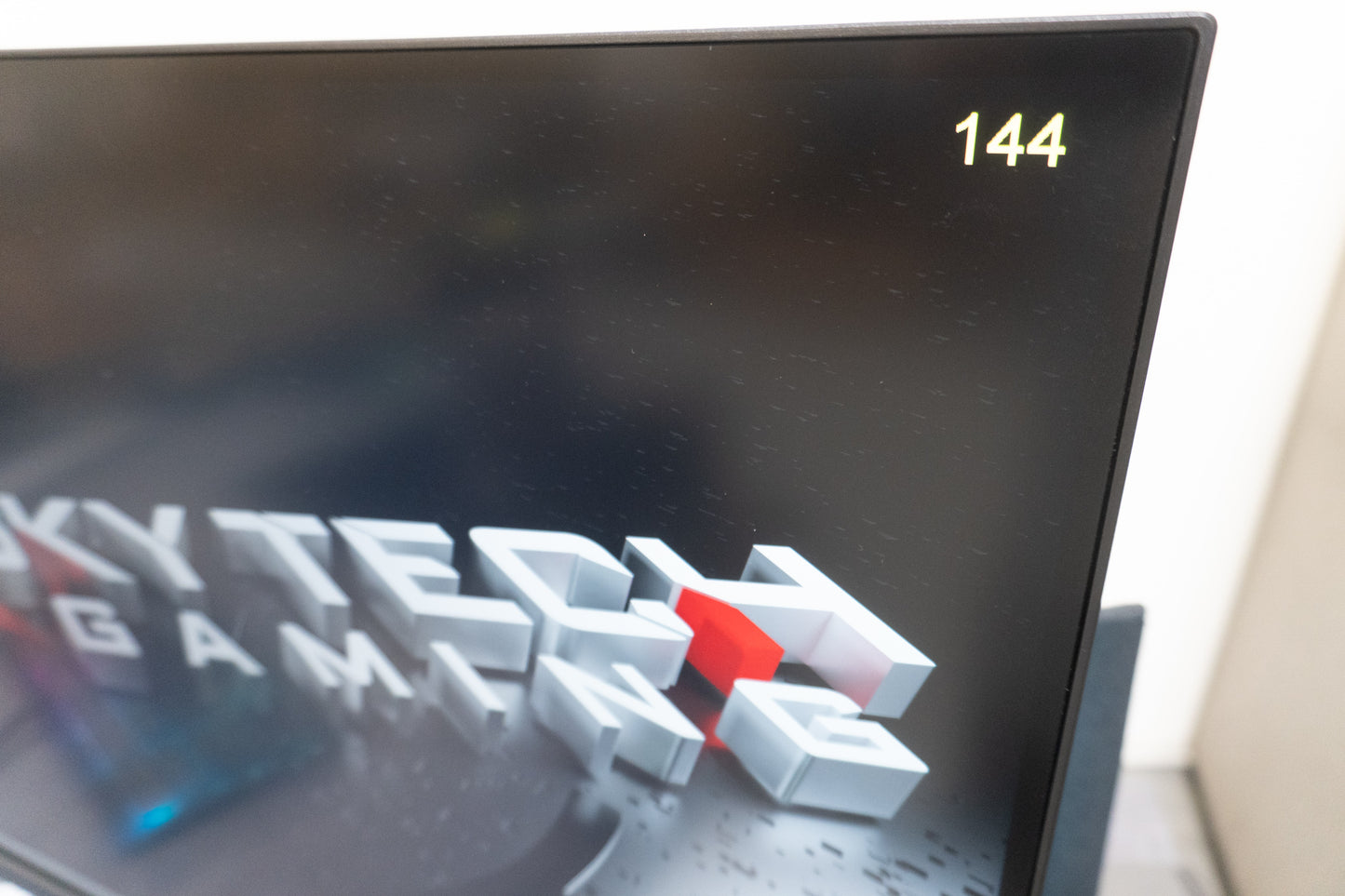

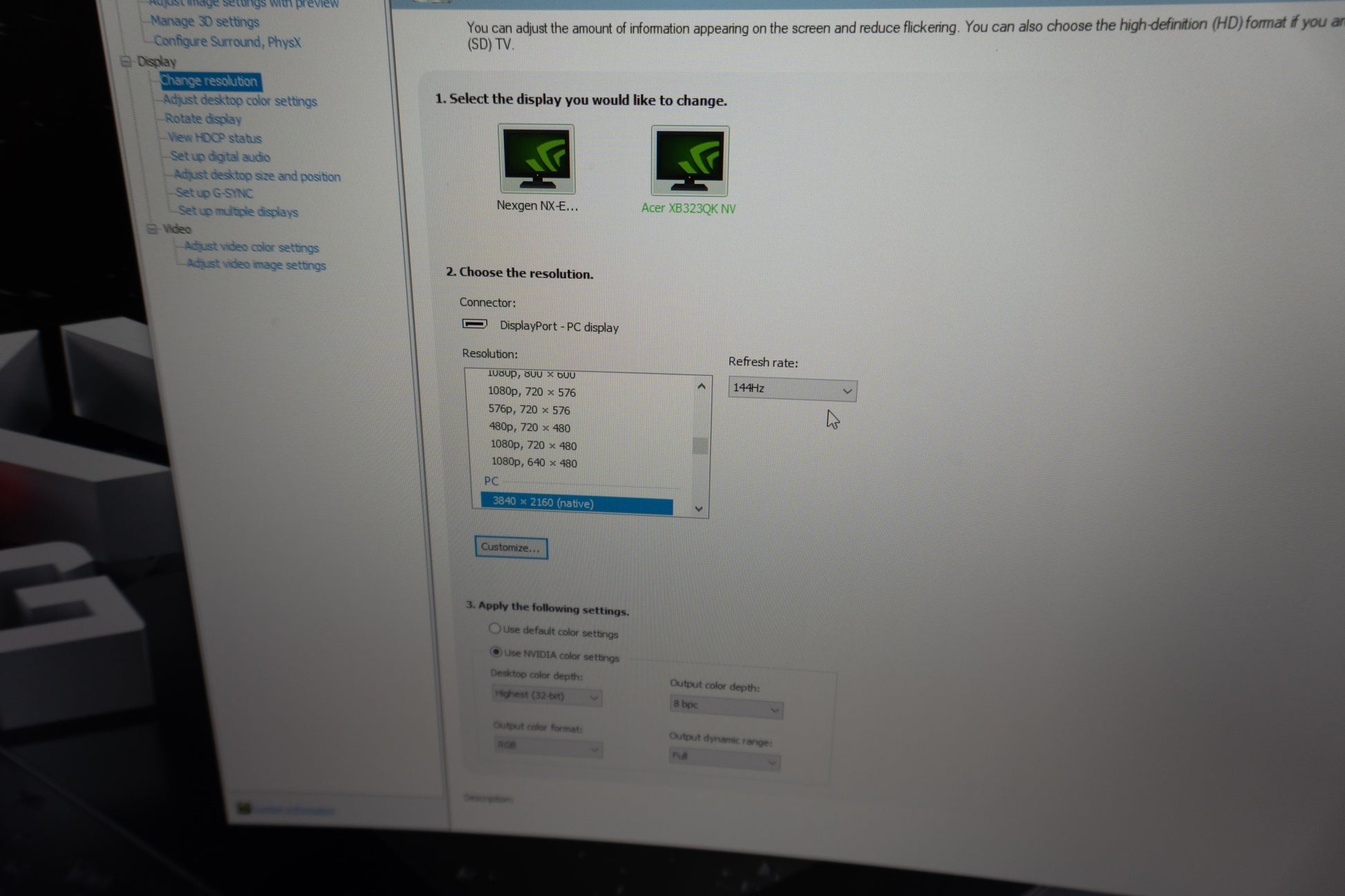

• Support high resolution and high refresh rate up to 4k 120 hz-144 hz when using the KVM switch in conjunction with fiber optic DisplayPort 1.4 cables or VESA certified DisplayPort 2.1 cables.
• (4K120~144hz RGB/4:4:4 support is not guaranteed with different combinations of GPU I/O, monitors, cables, and docking stations in the line of connections)
• Support 4k @ 60Hz with regular (copper) DisplayPort cables
• Support Apple Mac systems'  new video Dynamic Variable refresh rate,
• Support Apple both intel-based and new Apple-silicon-based Mac systems,
• Fastest DisplayPort 1.4 KVM switch line in the world with patent USB DDM and Full-time EDID emulation a technology,
• Support Thunderbolt 4 hubs and Thunderbolt 4 docking stations connected to laptop computers.
• The only KVM switch line supports multi-Logitech wireless Unifying Devices,
• Support DisplayPort bi-direction full-bus link train for better DisplayPort video switching and optimal sync with each GPU on connected systems,
• No video content/ GUI/ desktop app resizing and relocating while switching between connected systems.
• Fastest switching time up to (less than 0.3 ms),
• Our patented DDM technology allows no Latency USB HID devices switching (0.0 ms)
• Stackable design for supporting and controlling more than 2 monitors (stacked two units to support 4 DisplayPort monitors) from one set of HID (keyboard and mouse..etc).
• Built-in USB 3.0 HUB ports for sharing other USB devices ( USB WebCAM, USB Audio DAC, USB Speaker or USB Headset...USB touchscreen).
• Built-in IR sensor for remote control from IR remote controller
• Built-in serial port for control and firmware upgrade
• Built-in Rackmountable (19-in rackmount kit - optional accessory),
• Nvidia G-Sync, AMD Freesync, and VESA Adaptive Sync. compatible
• Industry-leading standard 3-year warranty,
• Lifetime tech support included.
• Product dimensions are 12.61 inch x 5.91 inch x 2.36 inch
• Product made in Taiwan

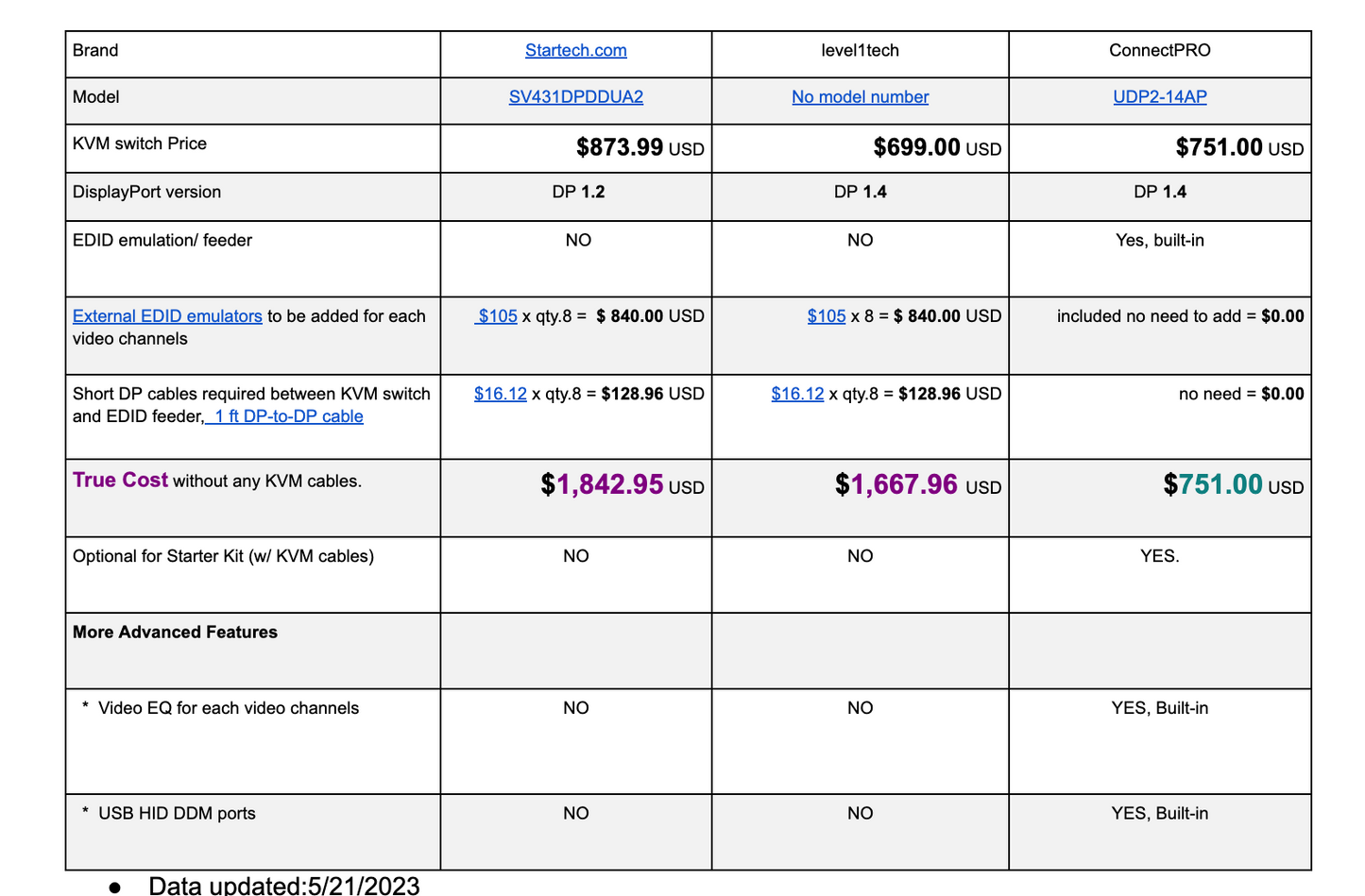

• The Best Value and the lowest true cost for Advanced DisplayPort KVM switch.

- For detailed dimension drawing, please refer to this page.
